Developed by Anchor Yachts

Designed by Crescendo Designs

Built by Pacific Seacraft in the USA

Elevate your time on the water with the Razor Cat 38

Foiling Performance Power Cat

The hydrofoil system improves the performance and ride comfort, while increasing the efficiency by 40% over non-foiling boats. With 400 gallons of fuel aboard the Razor Cat 38 has a 500+ mile range when operating at a cruising speed of 30 knots and the twin 300 HP outboards can deliver a top speed of 45 knots.

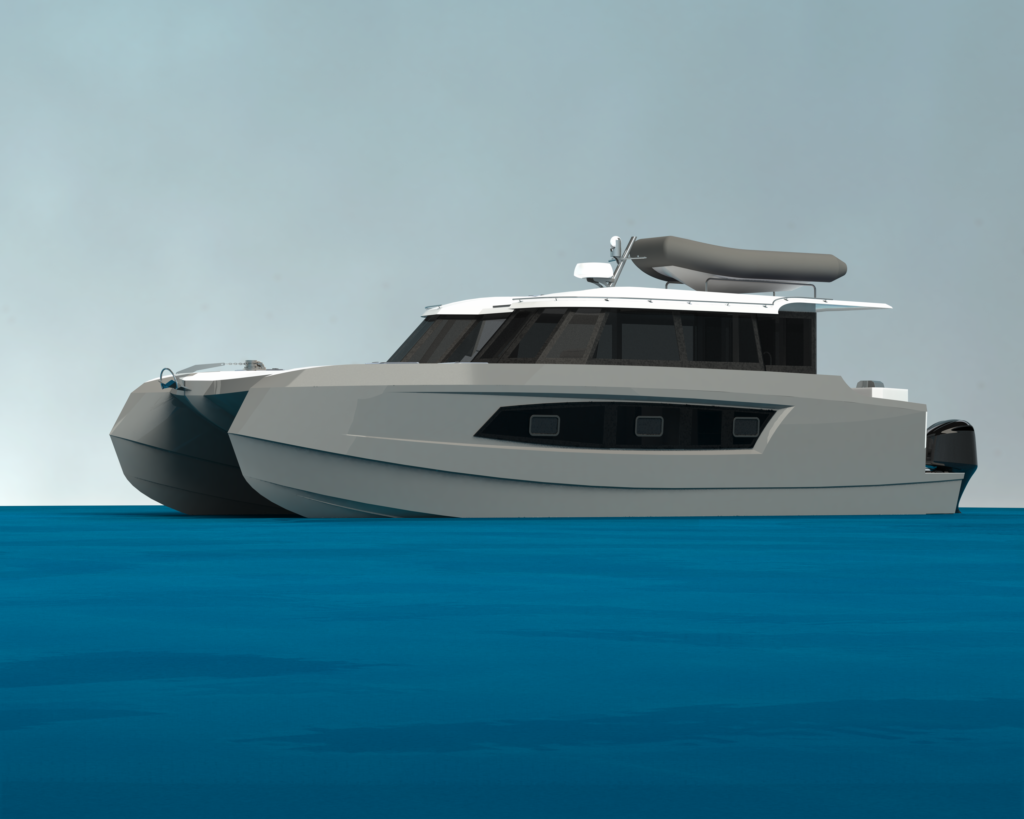

Razor Cat 38 Power Cat – Overview

Think of the Razor Cat 38 as your “escape pod” for adventure cruising. Providing performance, efficiency, and comfort on the water through the unique features and well thought design. The foil system increases efficiency by 40% over non-foiling boats, while improving performance and ride comfort. With 400 gallons of fuel aboard you have a 500+ mile range cruising at 30 knots, with a top speed of 45 knots. A key design element that the Razor Cat 38 shares with the Razor Cat 52 is the central inside helm station and 360 degree views throughout the bridge deck from both the sitting and standing positions.

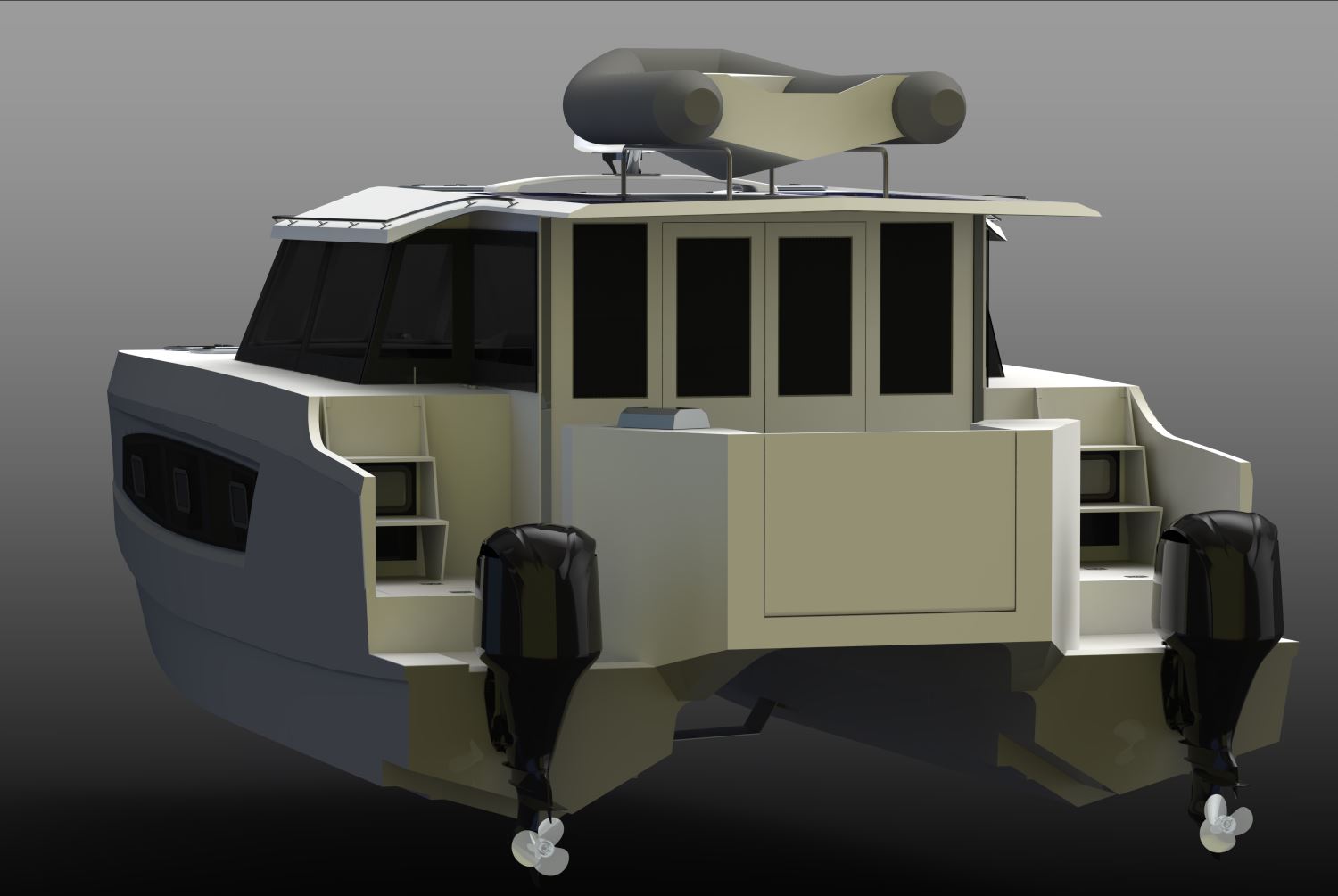

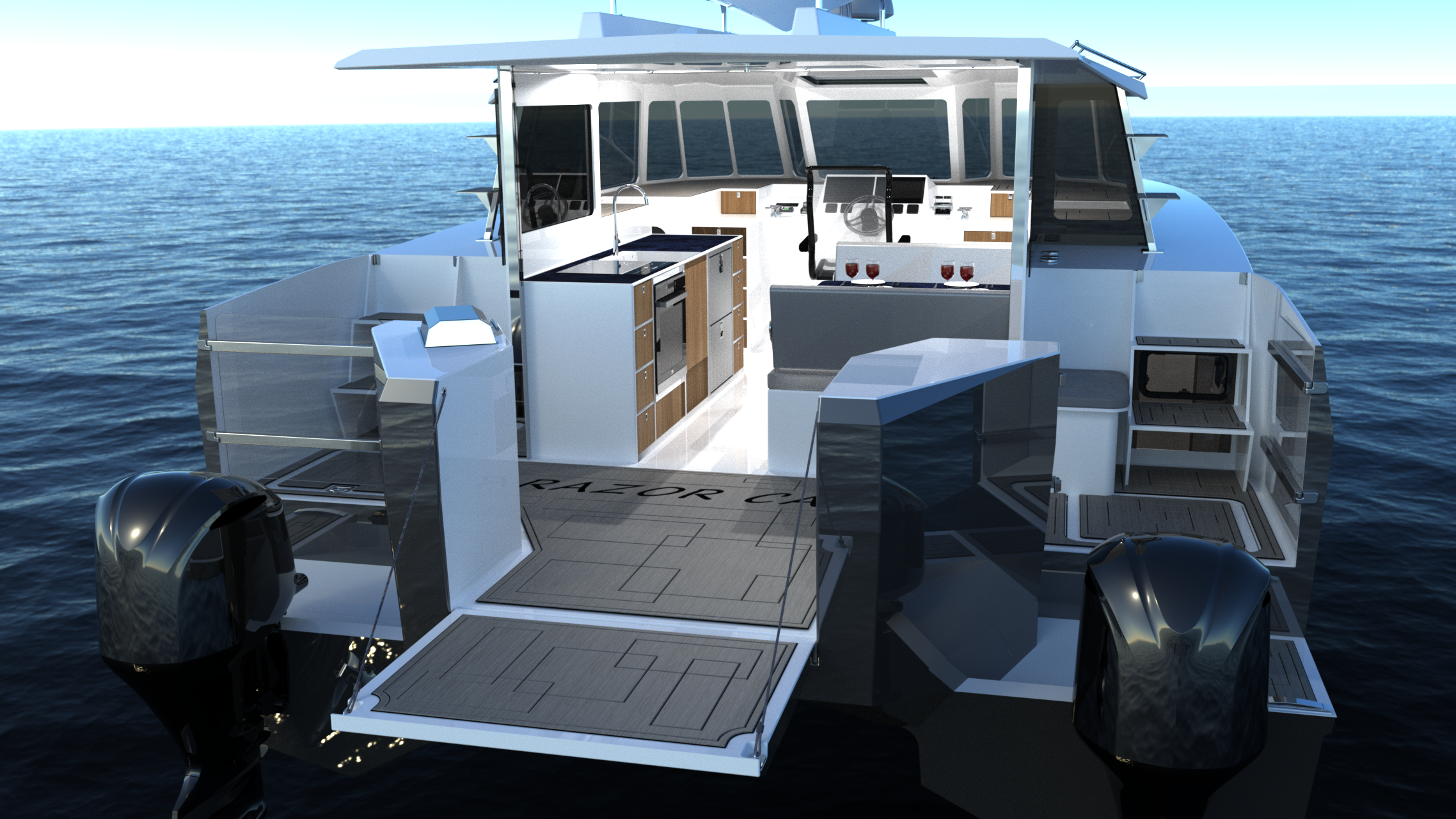

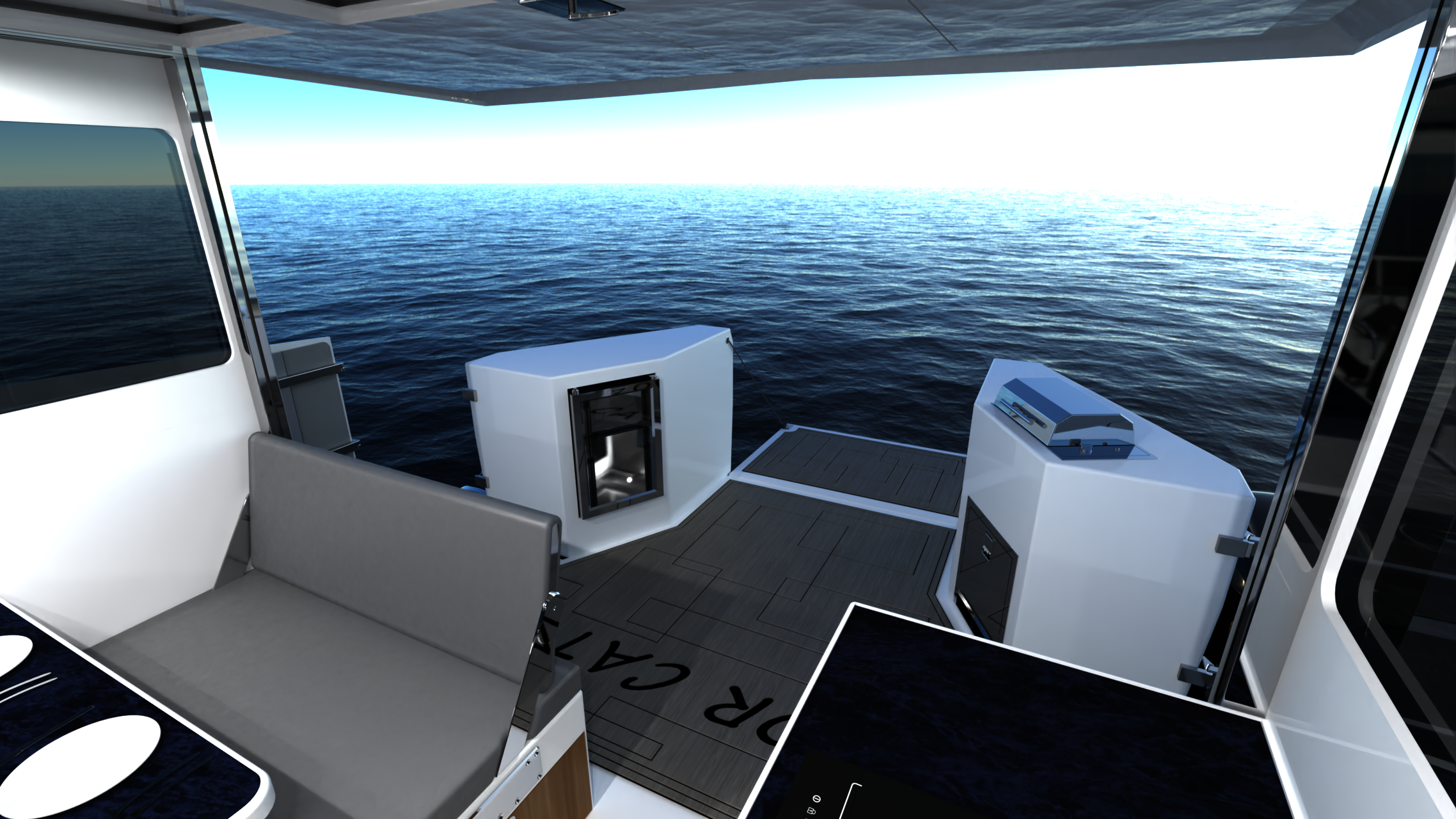

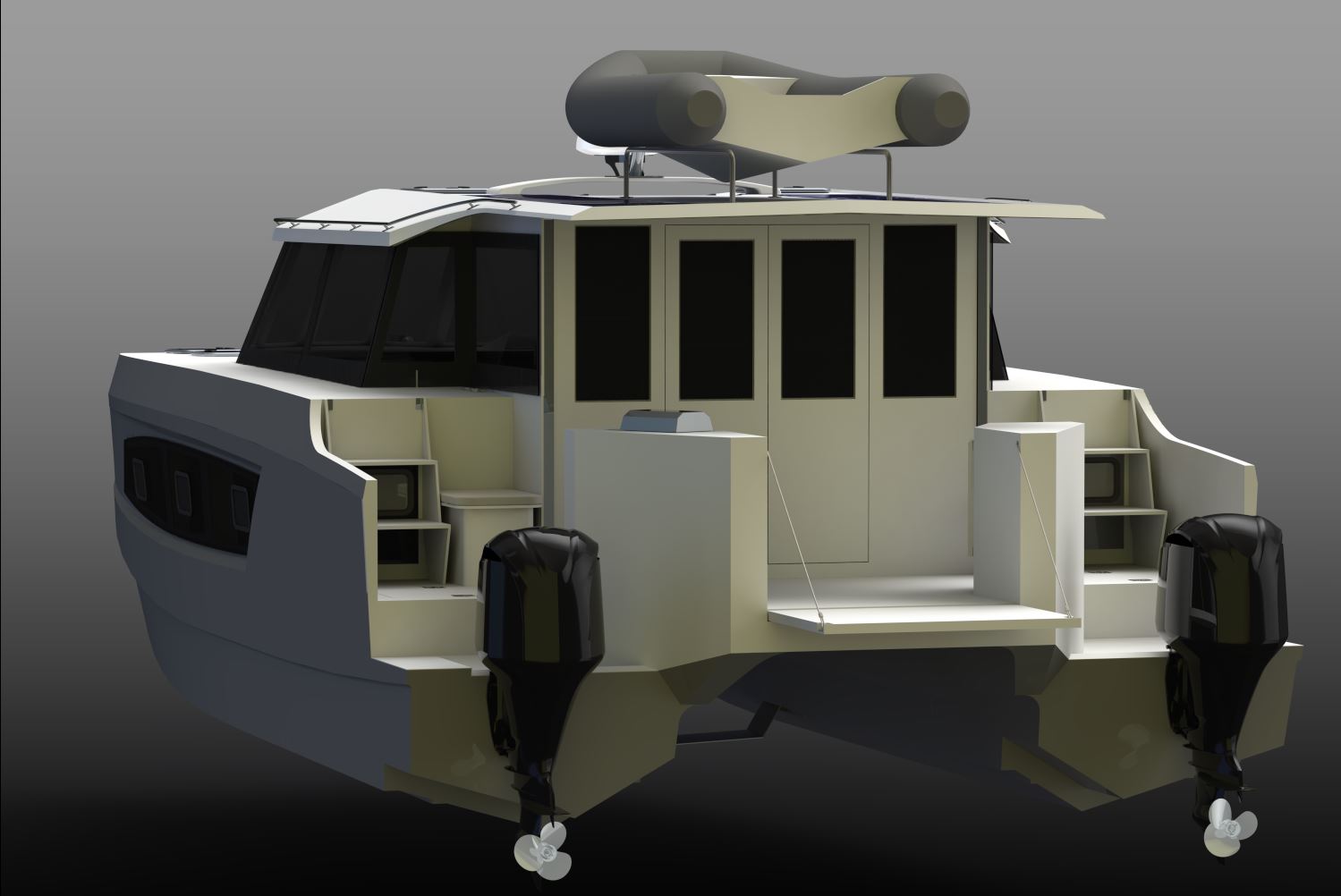

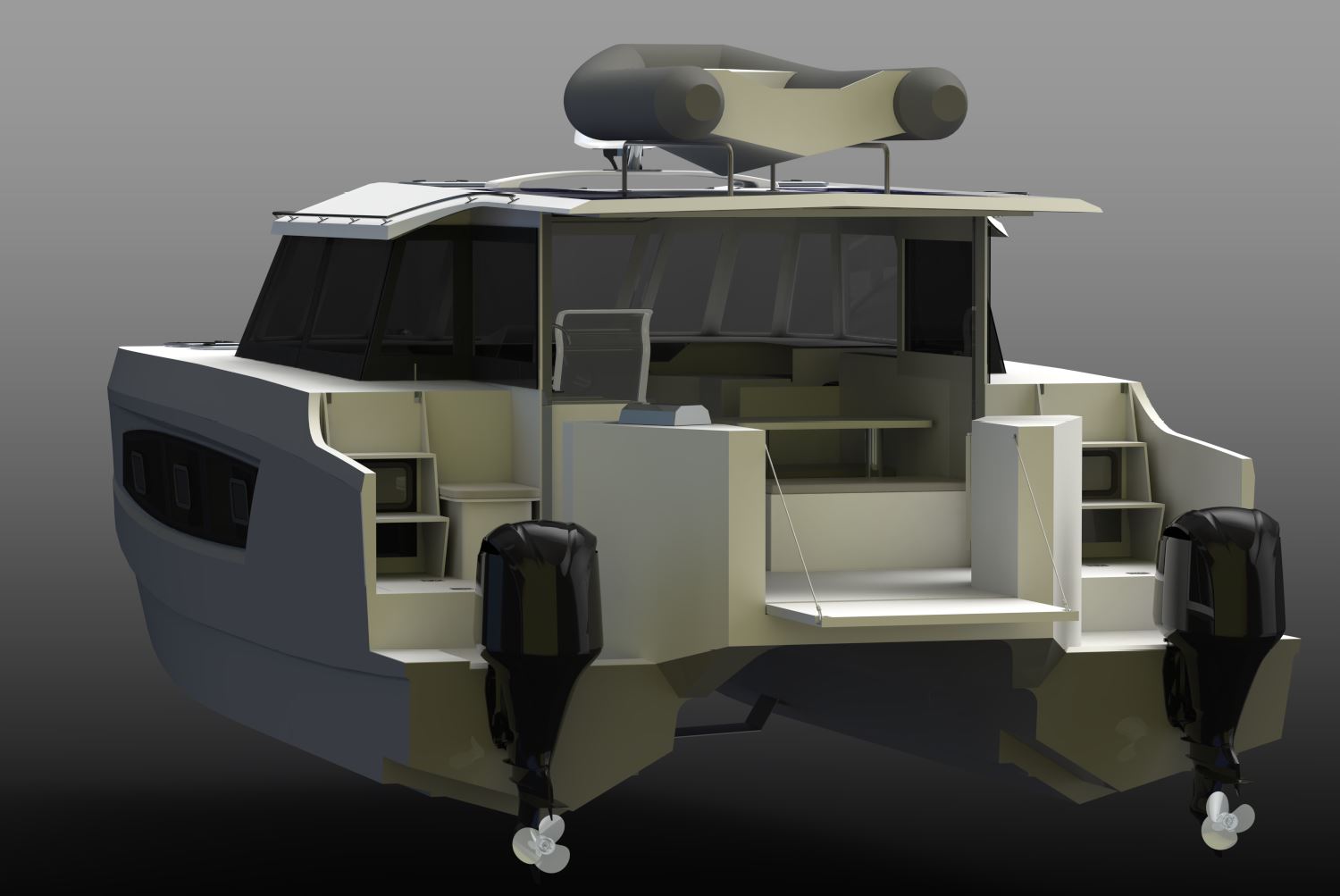

The Razor Cat 38 provides seamless indoor/outdoor living with the Vista Door, which enables the entire aft wall of the salon to raise into the cabin top when desired. This combined with the near 17 foot beam creates a very spacious “single level” living space that is larger, and more usable, than most 50′ boats. The innovation does not stop there, the cockpit has a built in electric grill station on the port side (with a 12 volt icemaker beneath) and built in beverage fridge opposite on the starboard side. The aft cockpit seat spilts into two benches that can be relocated next to the deck steps when you want to access the transom. The transom folds down to make a large swimming platform or boarding area. The fold down transom has the added benefit that it extends beyond the end of the outboards when they are tilted out of the water which allows you to board from the transom when you are stern to a dock. You can also board the boat from either side with convenient side cockpit access just forward of the outboards.

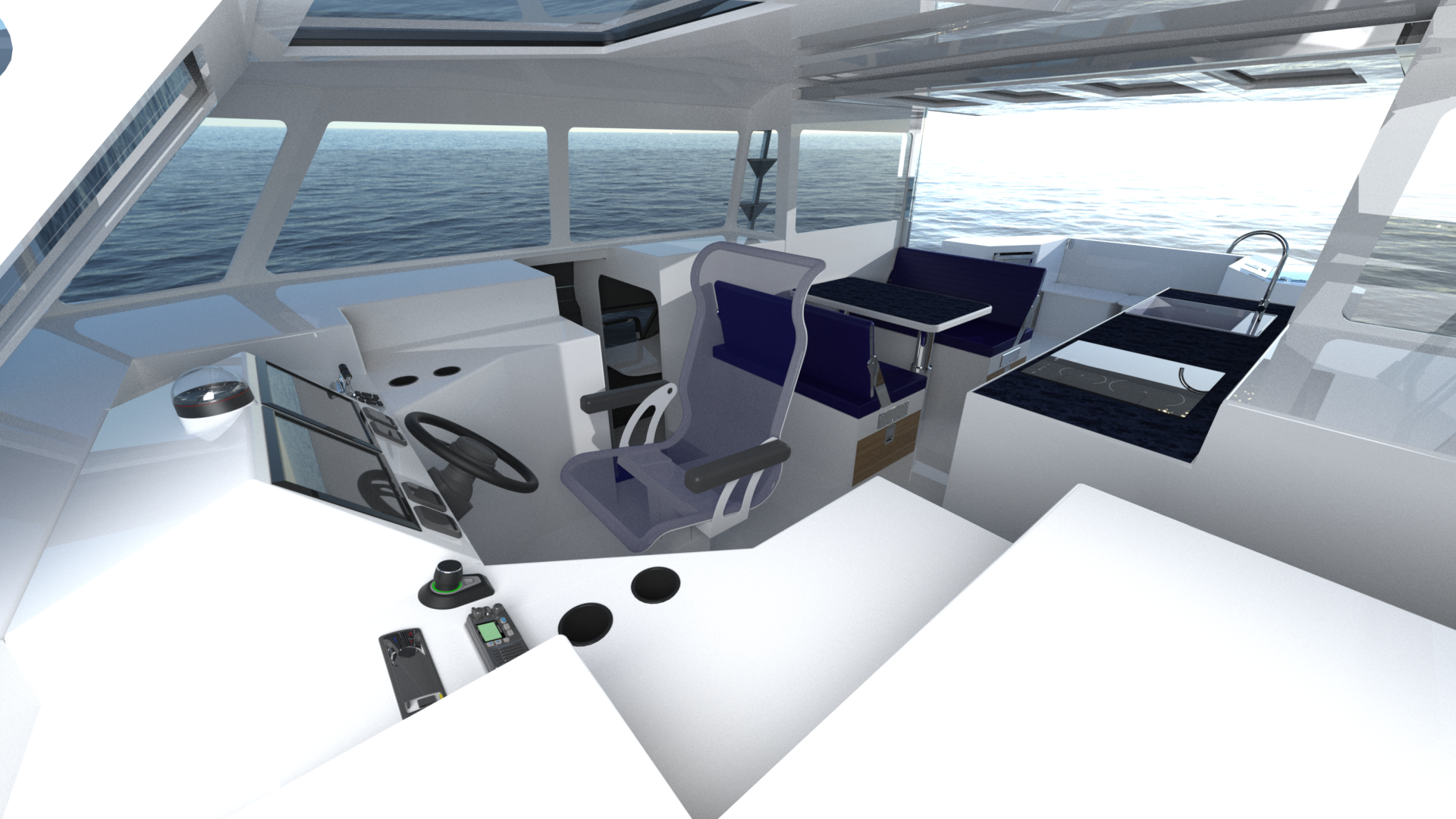

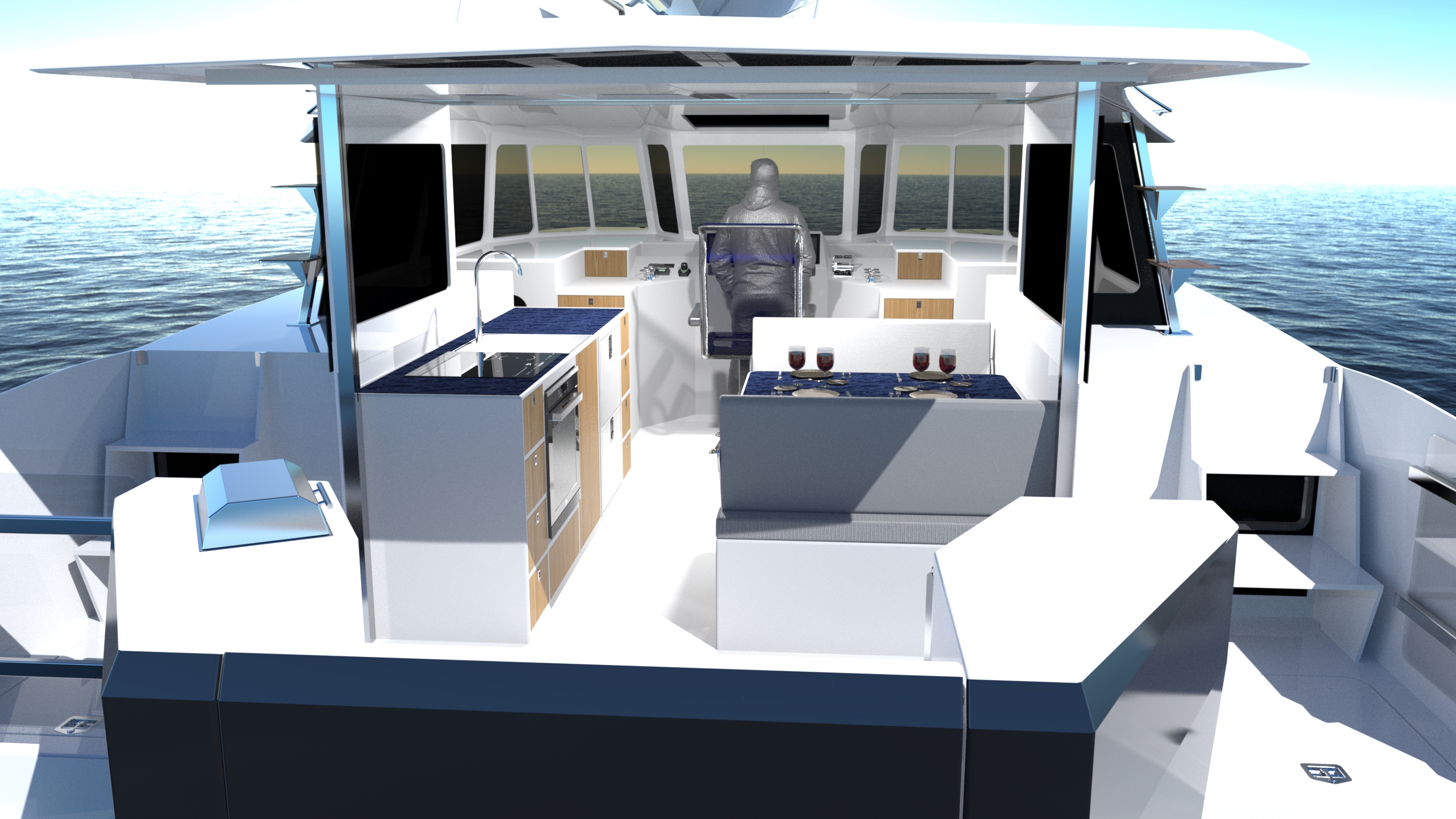

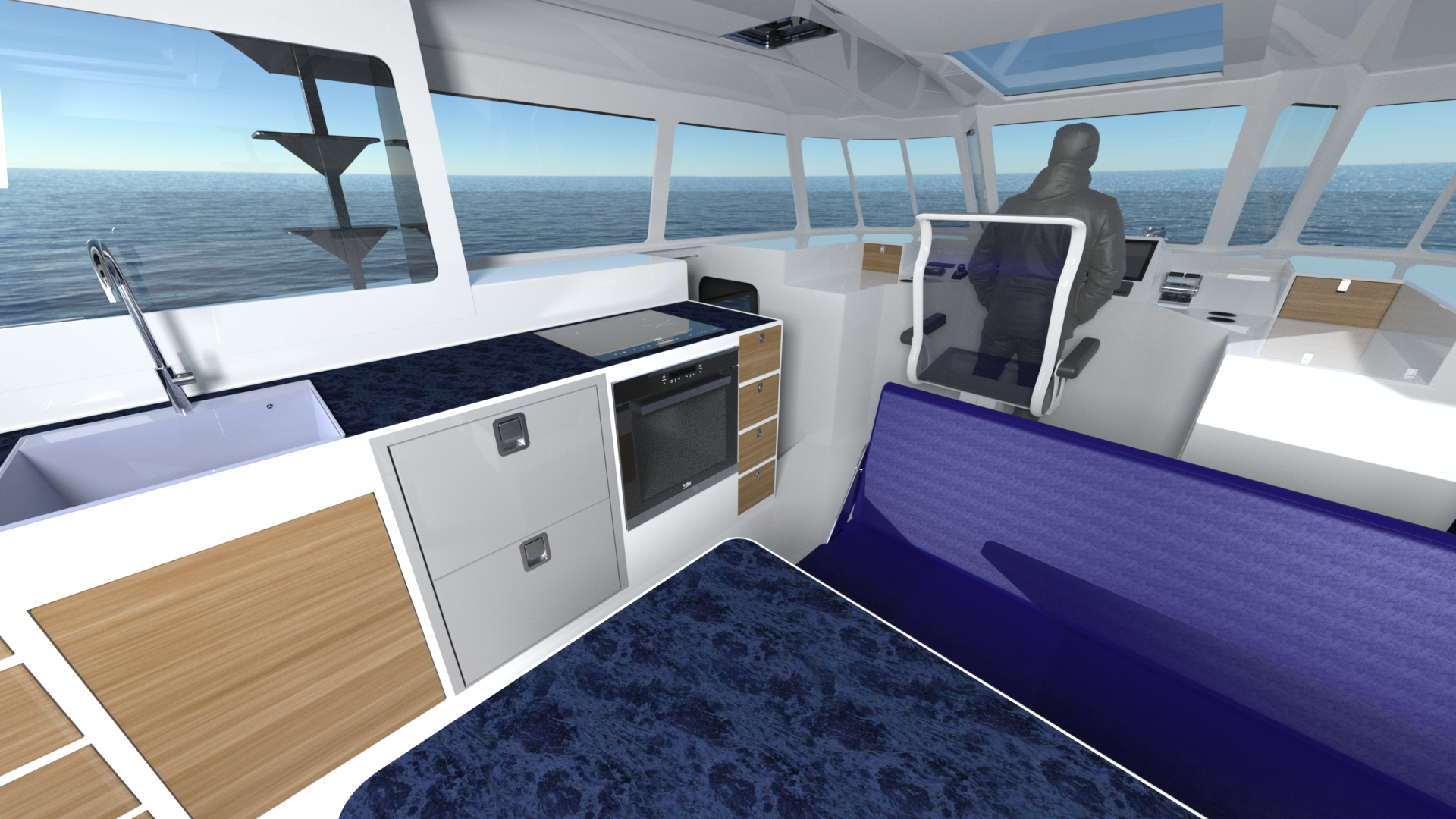

The salon has a linear galley to port that spans almost 8 1/2 feet and features a 24″ Kohler Prolific work station sink, Vitrifrigo DRW180 stainless steel fridge/freezer drawers, induction cooktop and oven, along with generous storage. Opposite the galley is the settee which has a high/low folding table (when lowered forms a coffee table or a double bed). The settee seat backs can flip forward or aft facing depending on how you wish to use the seats, making the settee very versatile. The settees also have large slide out drawers beneath providing easy access to provisions. The central helm station commands the forward portion of the salon, with a large sliding hatch directly above the helm.

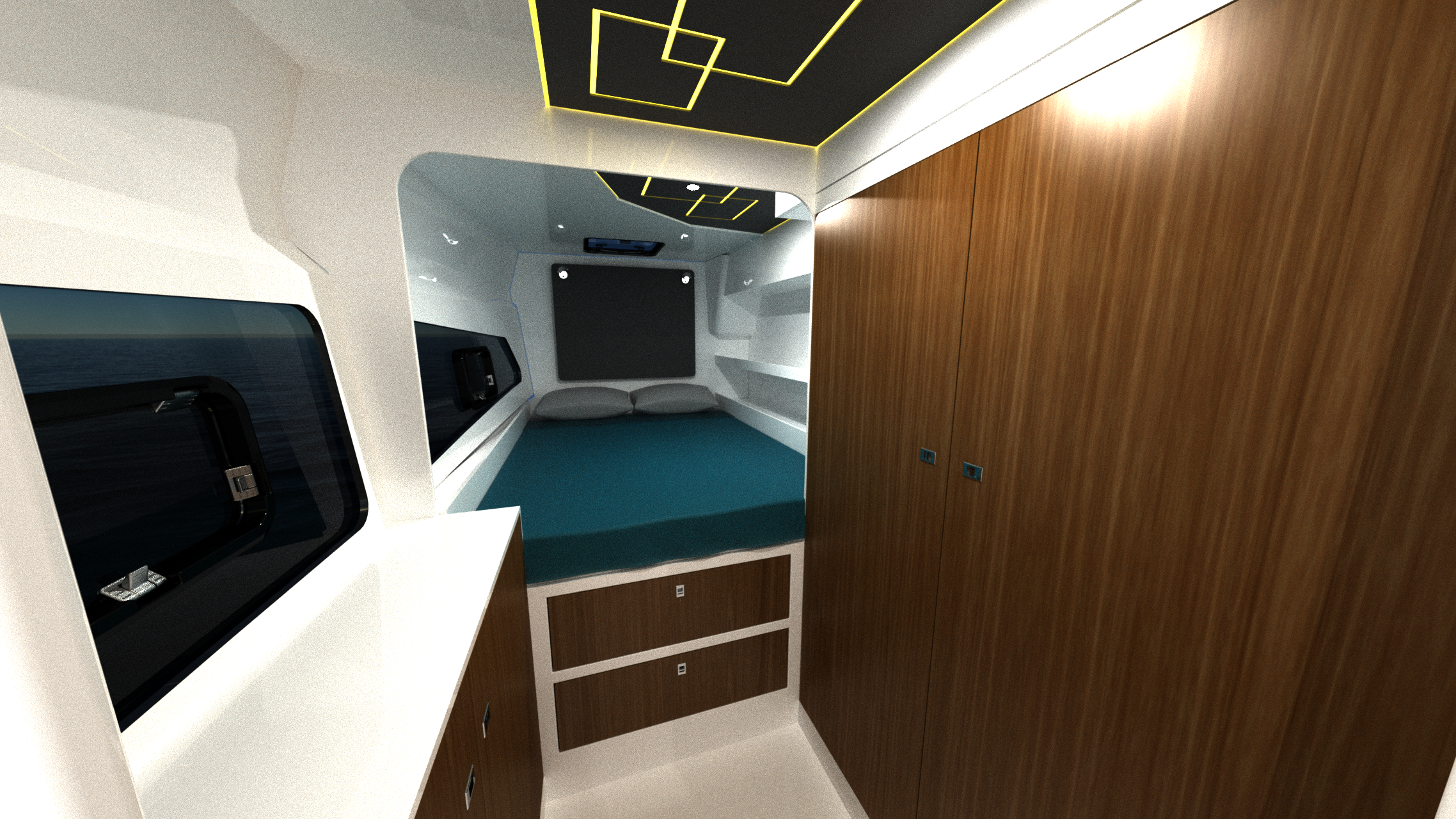

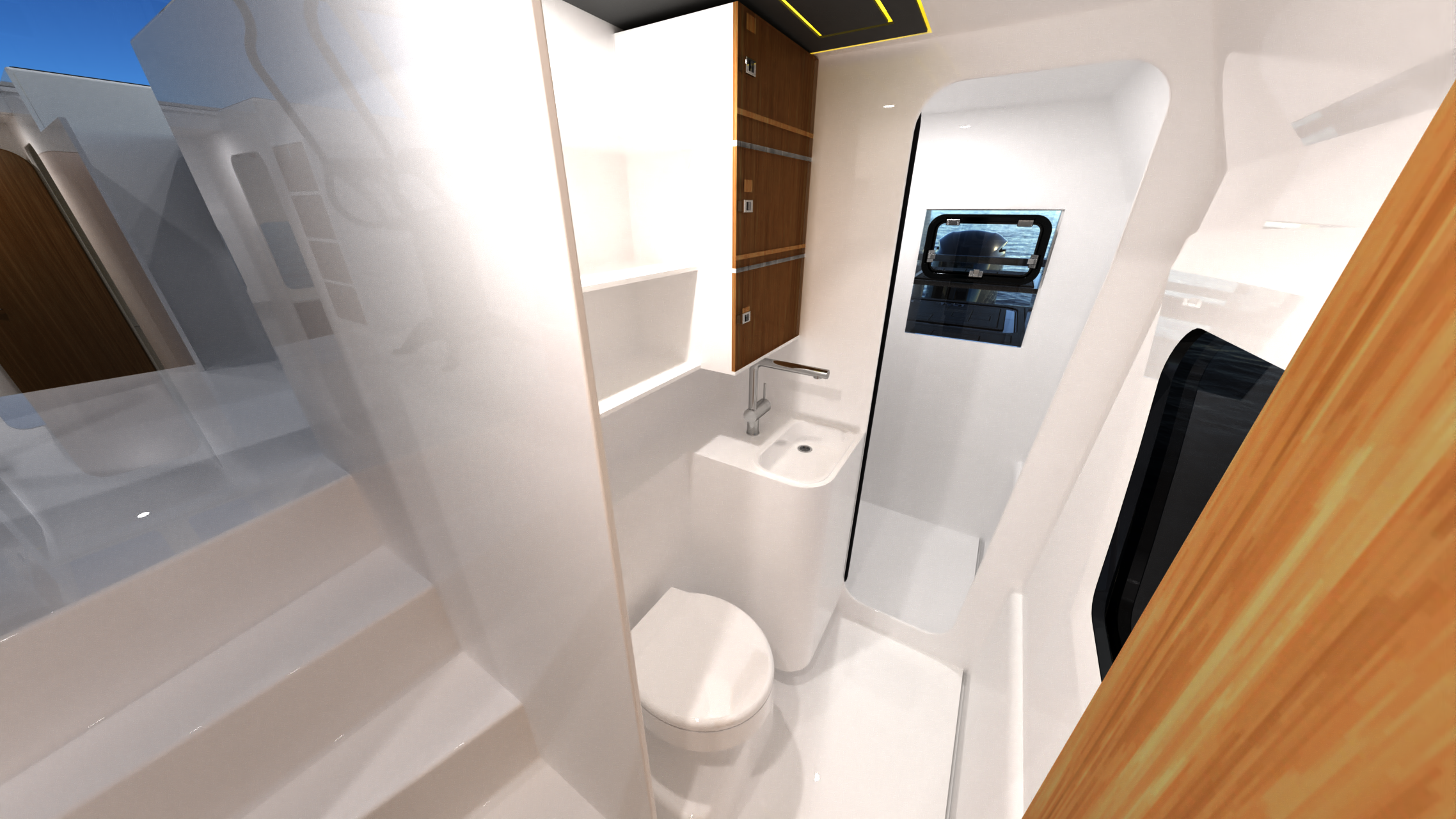

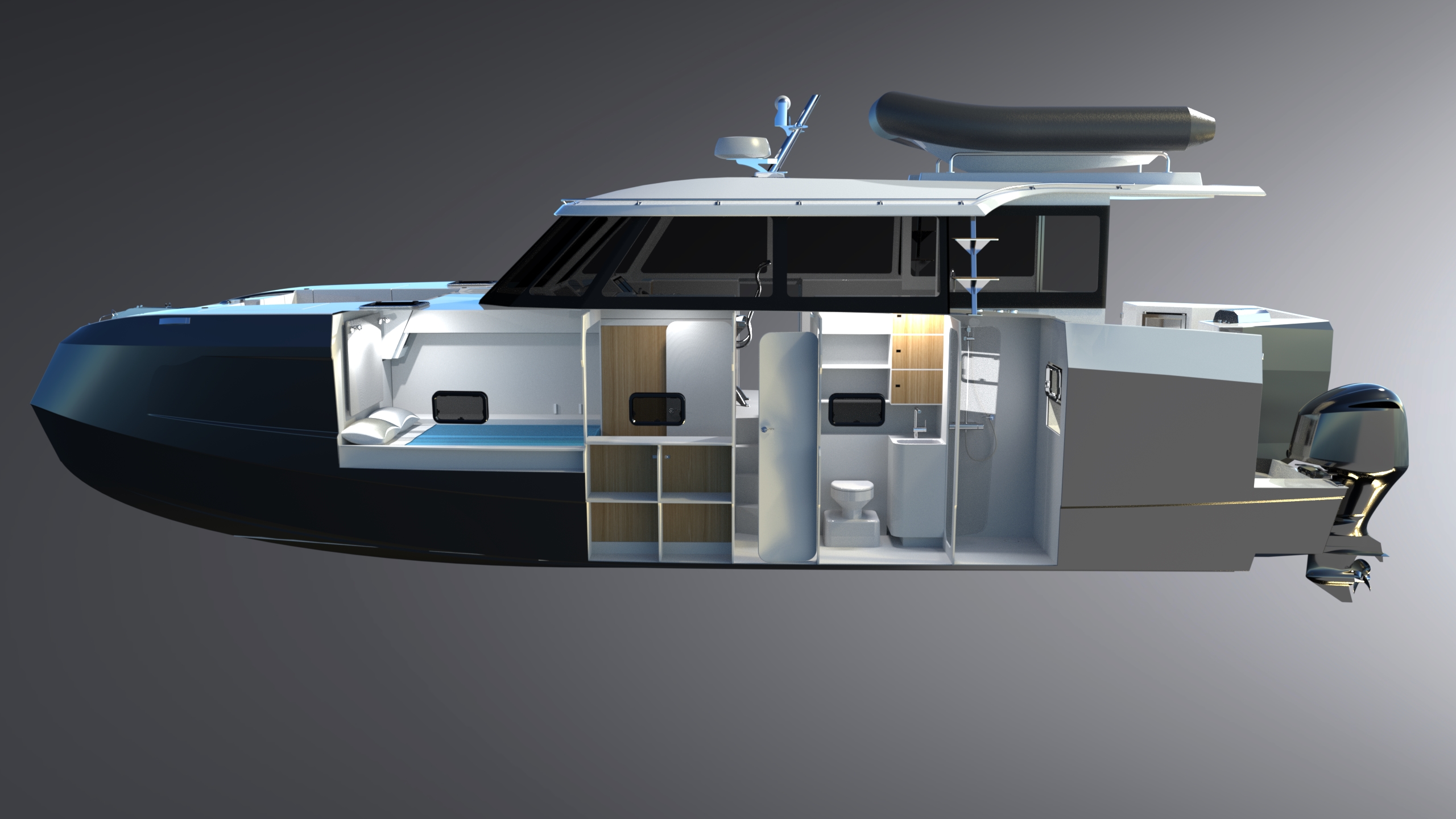

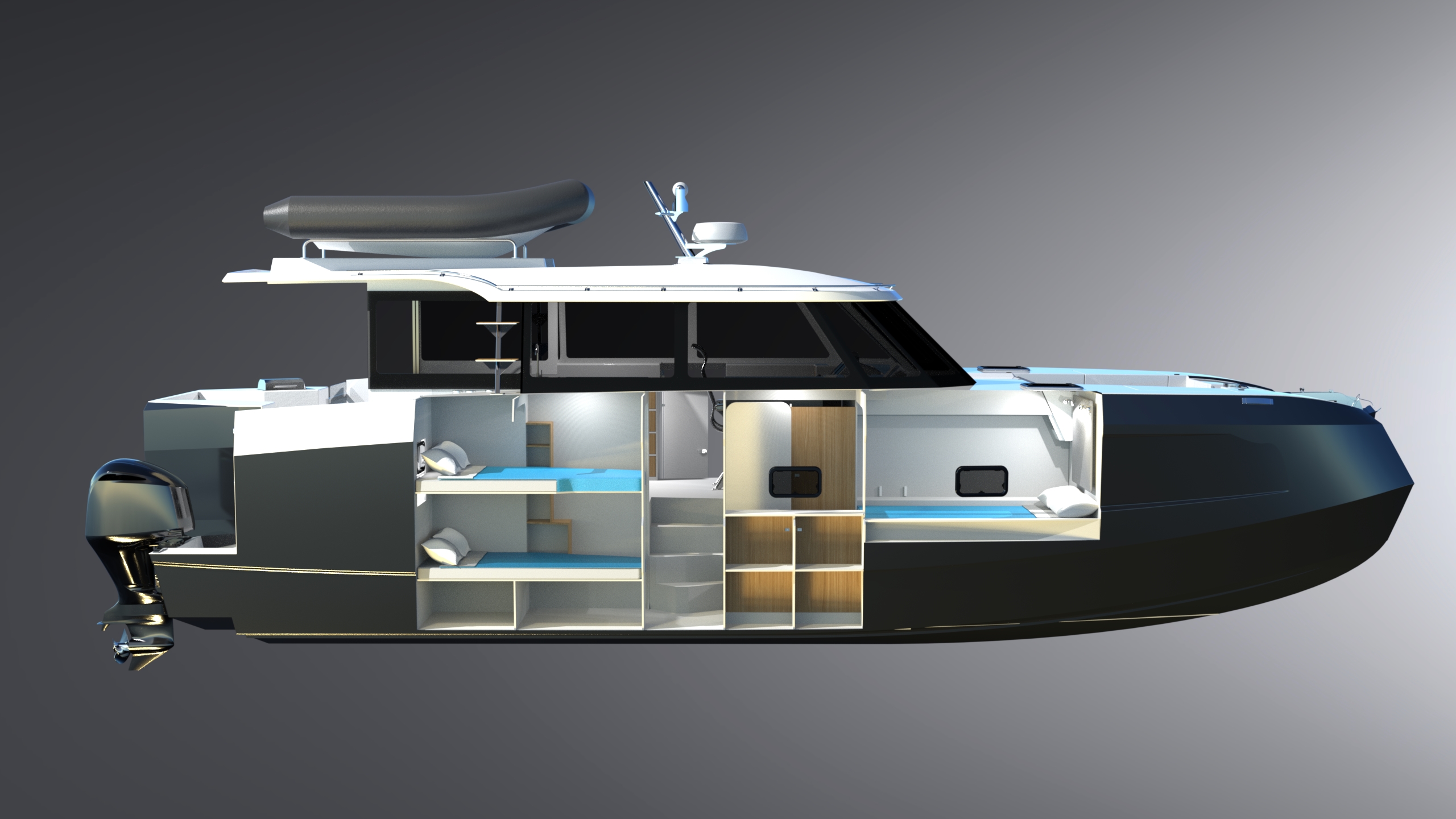

Each hull features a standard queen size berth with an opening hatch at the head of the berth, large hull window with an opening port, providing plenty of ventilation and light. The cabins also have a generous amount of storage with slide out drawers at the foot of the berth, inboard hanging locker, and outboard storage shelves. Moving aft past the steps from the hull to the salon you come to the head compartment and separate shower stall. Both the head compartment and shower stall have opening ports to add to the ventilation.

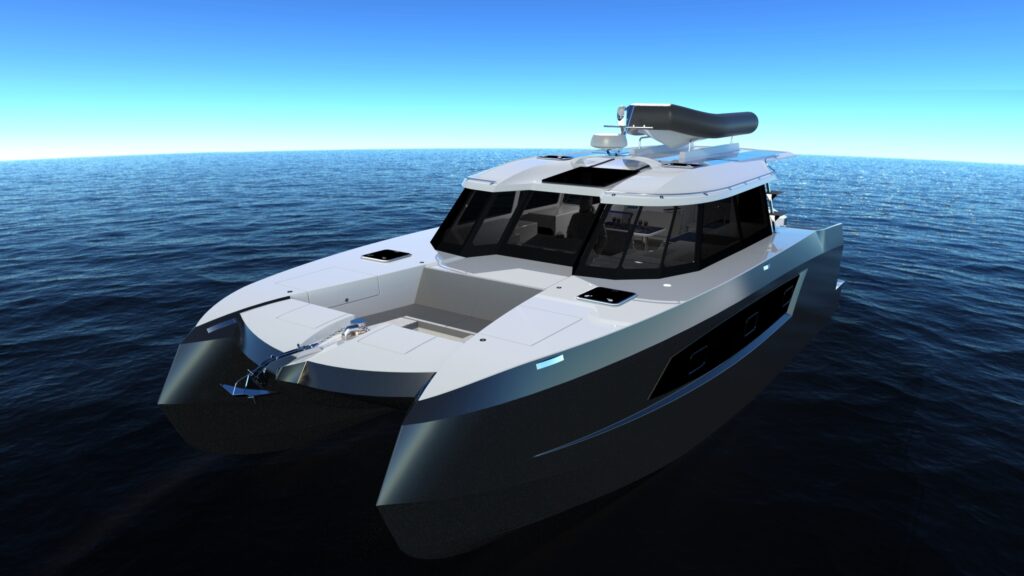

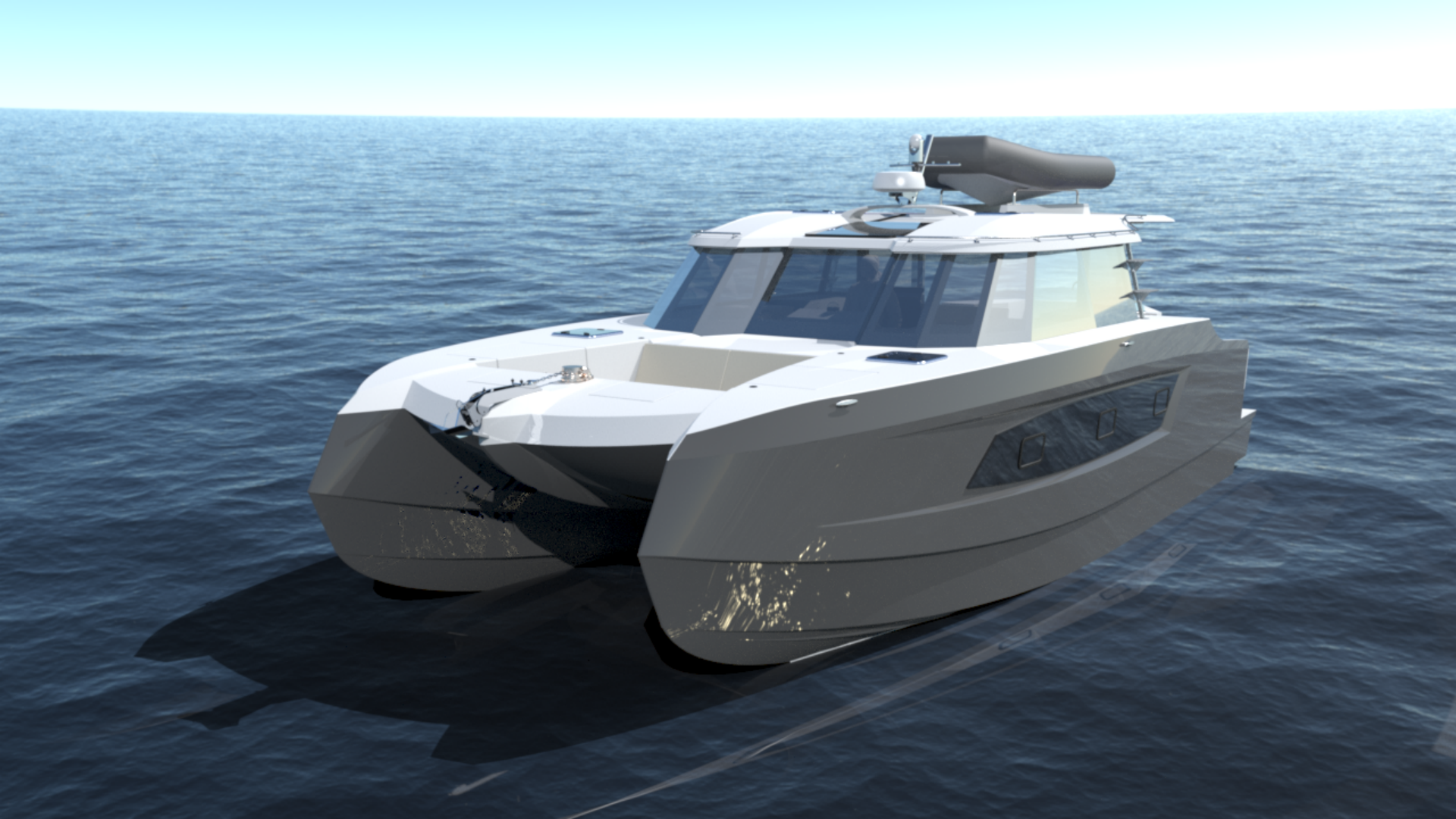

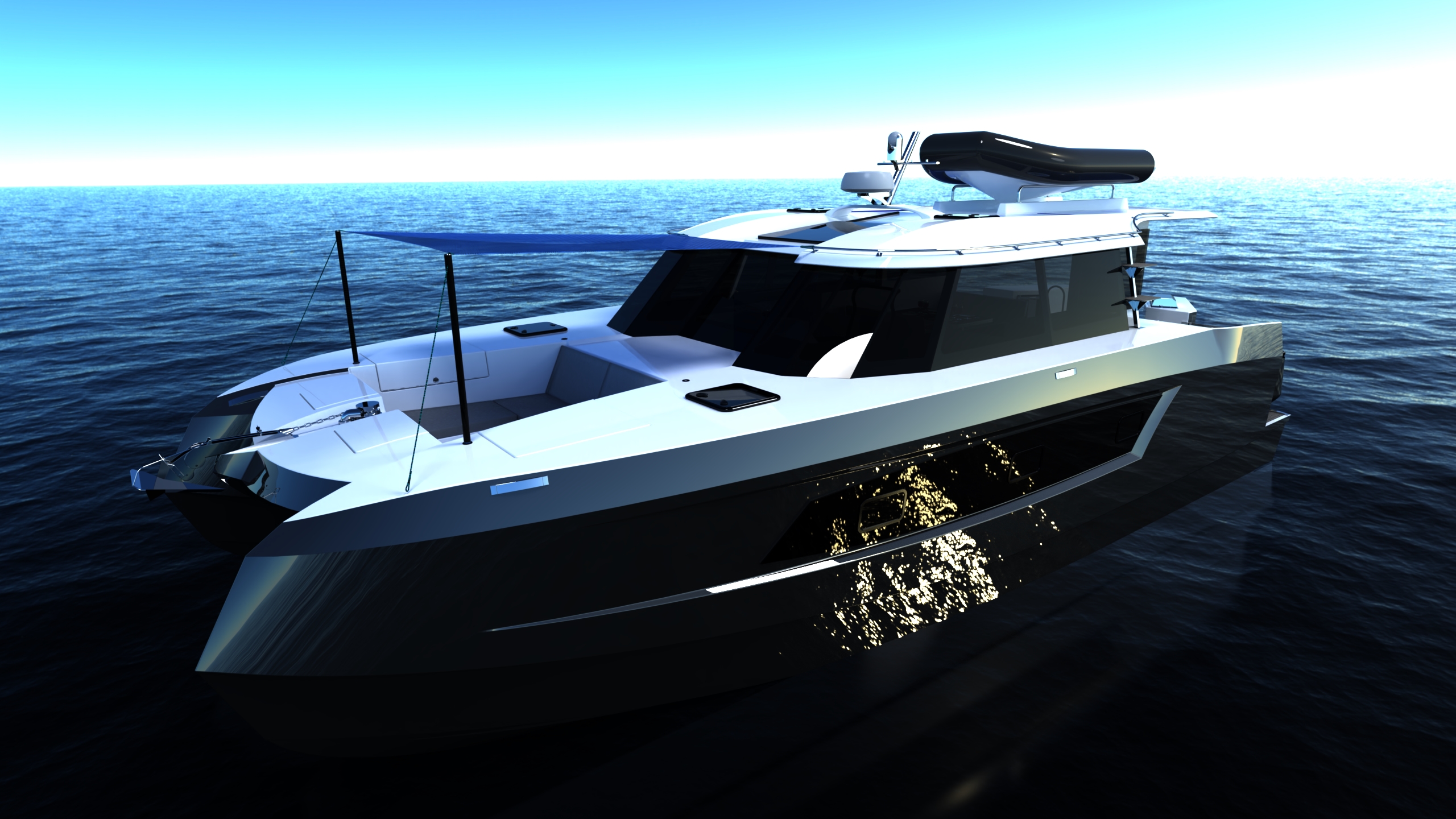

Forward of the salon is the systems room which is accessed by a large deck hatch that opens on gas struts. This is where the 7.5KW generator is located as well as the Lithium Ion batteries, inverter/chargers, and air conditioning units. This allows all the systems to be easily accessed and serviced while keeping them separate from the rest of the living area. Forward of the systems room is the comfortable forward cockpit which has storage beneath the cockpit seats. There is also large storage lockers in each bow which can be accessed by deck hatches and feature watertight bulkheads for added safety.

With the Razor Cat 38 you enjoy the journey as well as the destination!

Razor Cat 38 – Specifications

  • LOA – 40′ 7″ (Transom down)
  • LOD – 38′
  • BOA – 16’ 10”
  • Draft (outboards up) – 1′ 5″
  • Bridgedeck clearance – 2′
  • Freeboard – 6’3″
  • Full Displacement – 13,500 lbs (full tanks)
  • Lightship Displacement – 8,500 lbs (empty tanks)
  • Standard Engines – 2 x 300 hp Yamaha outboards (option for Mercury, or Suzuki)
  • Diesel engine option – 2 x 250 hp inboard diesel engines with I/O drives
  • Fuel tankage – 400 gallons
  • Water tankage – 100 gallons
  • Wast tankage – 25 gallon tank per toilet
  • Headroom – 6’9”

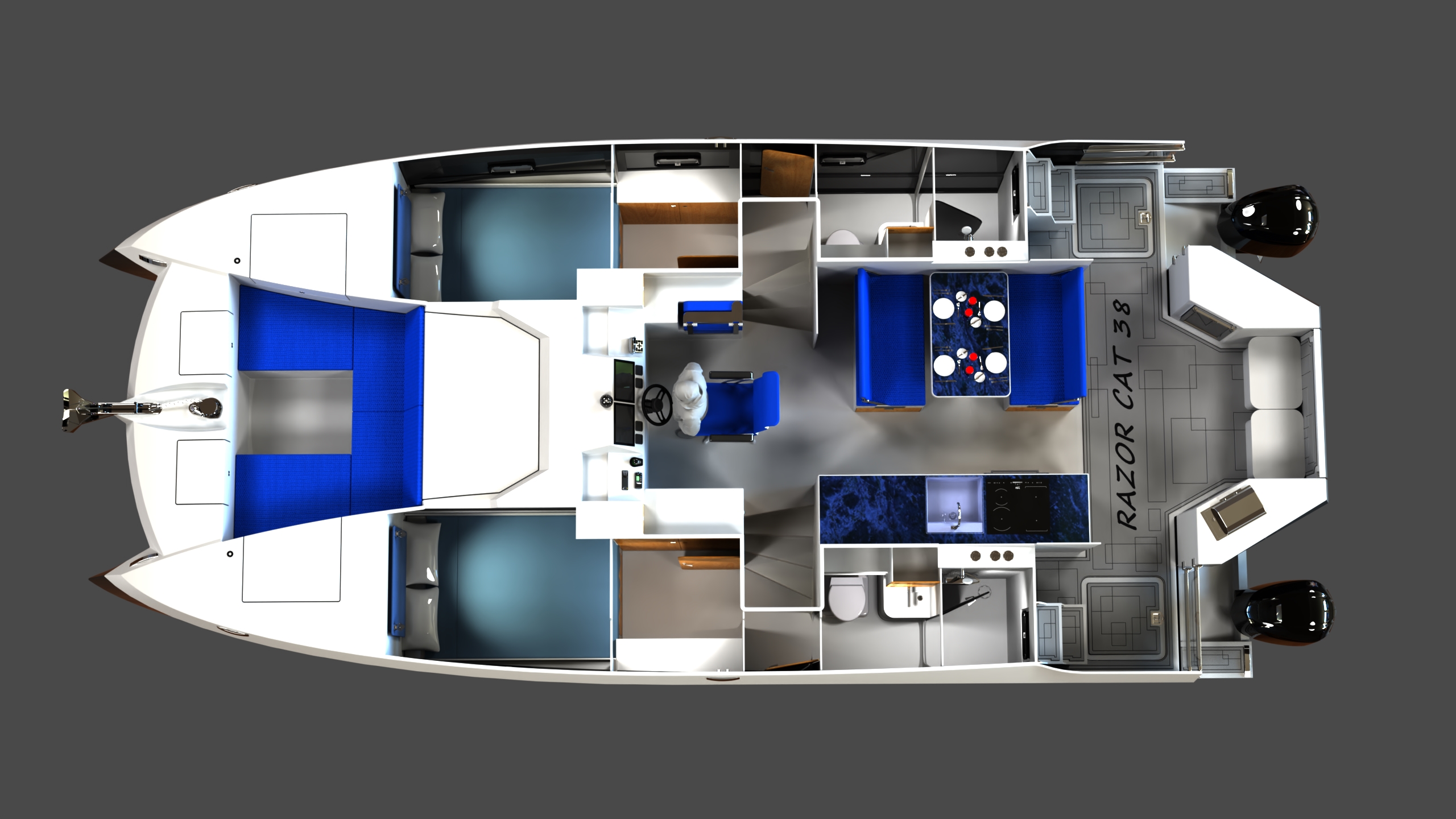

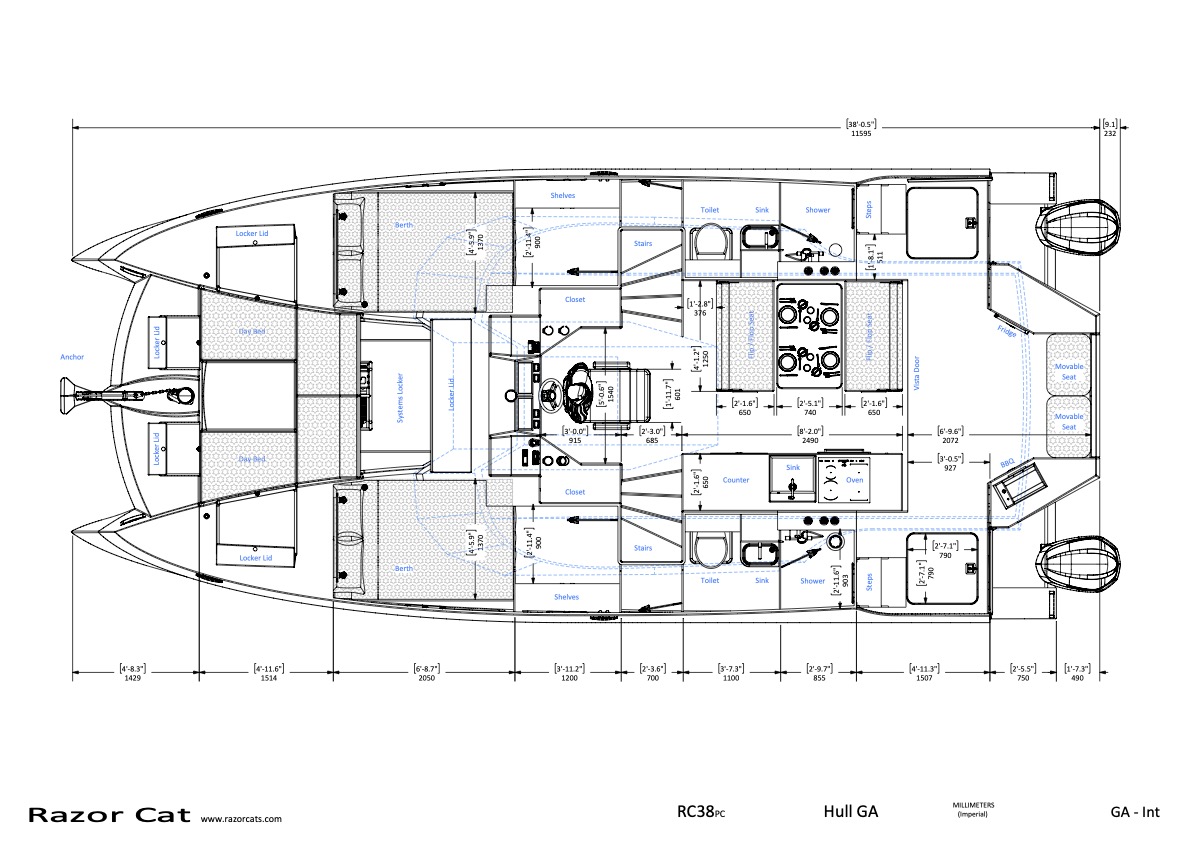

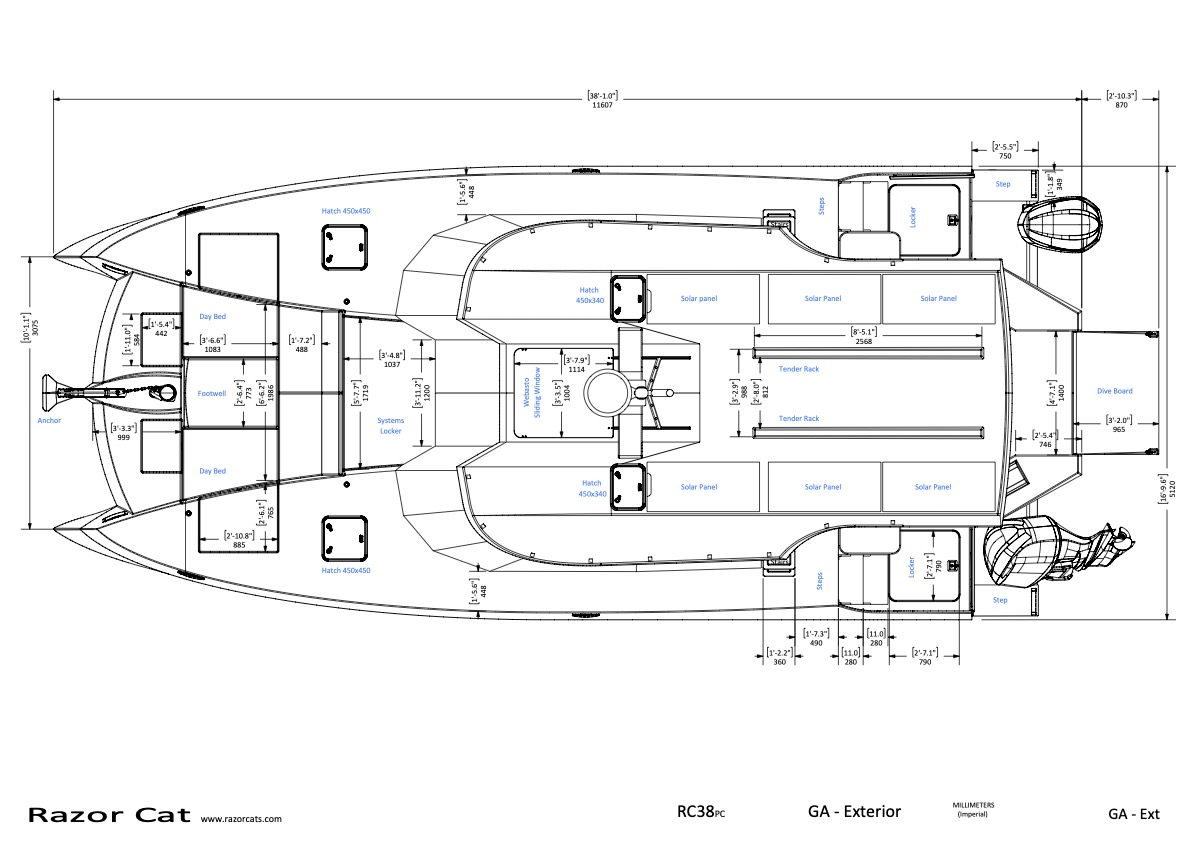

Razor Cat 38 Layout Drawings

Click on image to enlarge


Razor Cat 38 – Features

CONSTRUCTION DETAILS:
Built to the highest yacht standards, utilizing Infused epoxy and e-glass
Stainless steel hydrofoil system designed and built by Icarus Marine
Tempered safety glass windows in salon and hull
Removable carbon fiber crane with electric winch for launching tender

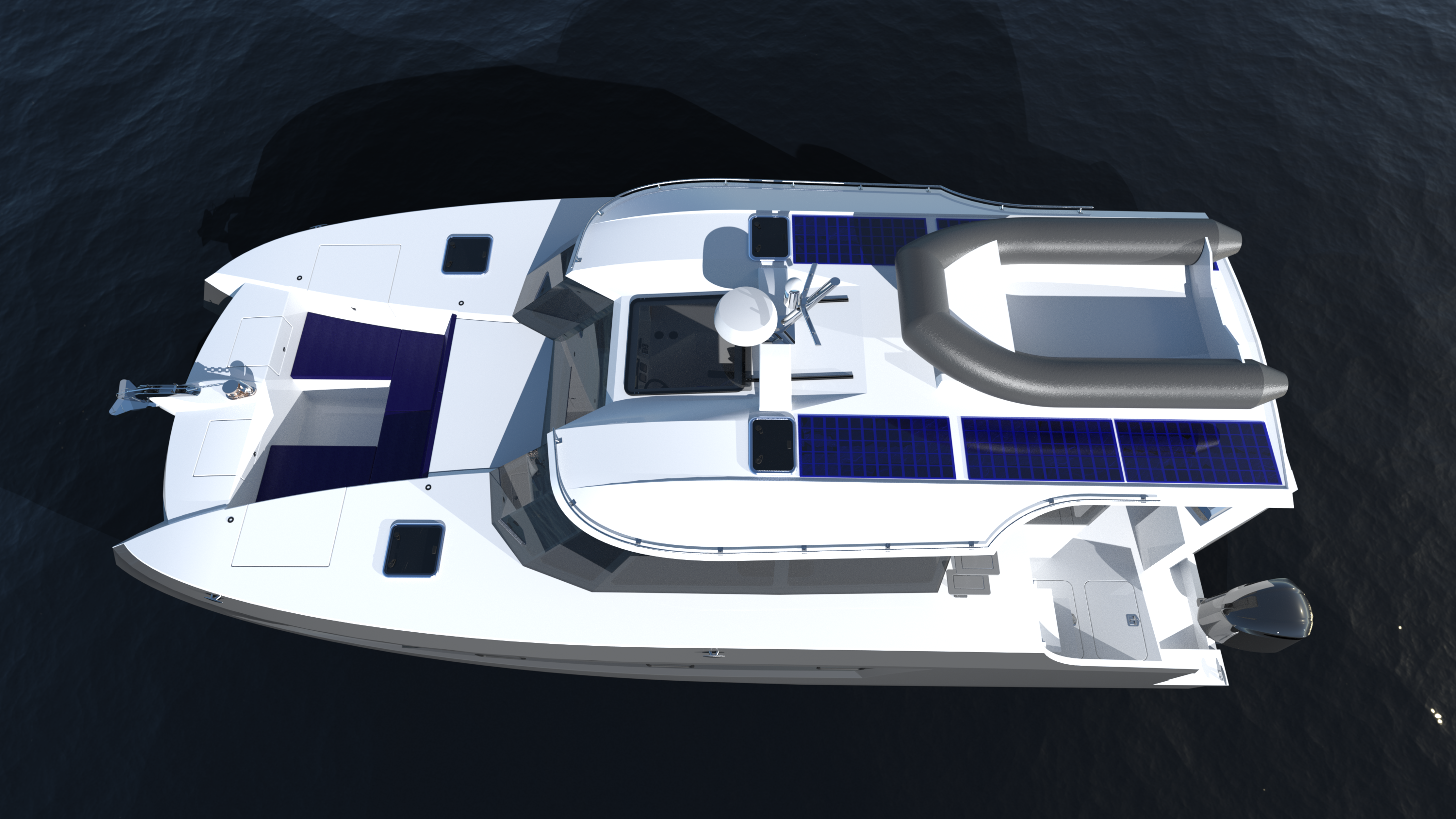

Tender storage on cabin top

GENERAL COCKPIT ARRANGEMENTS:
Full hardtop extending over cockpit
Vista Door completely opens salon to the cockpit
Built in electric grill
DC icemaker
Beverage fridge
Fold down transom provides large swim platform and easy boarding
aft cockpit seats are removable and can stow next to deck steps
Large deck lockers under cockpit sole in each hull
Deck steps fold up to allow for easy access to deck lockers

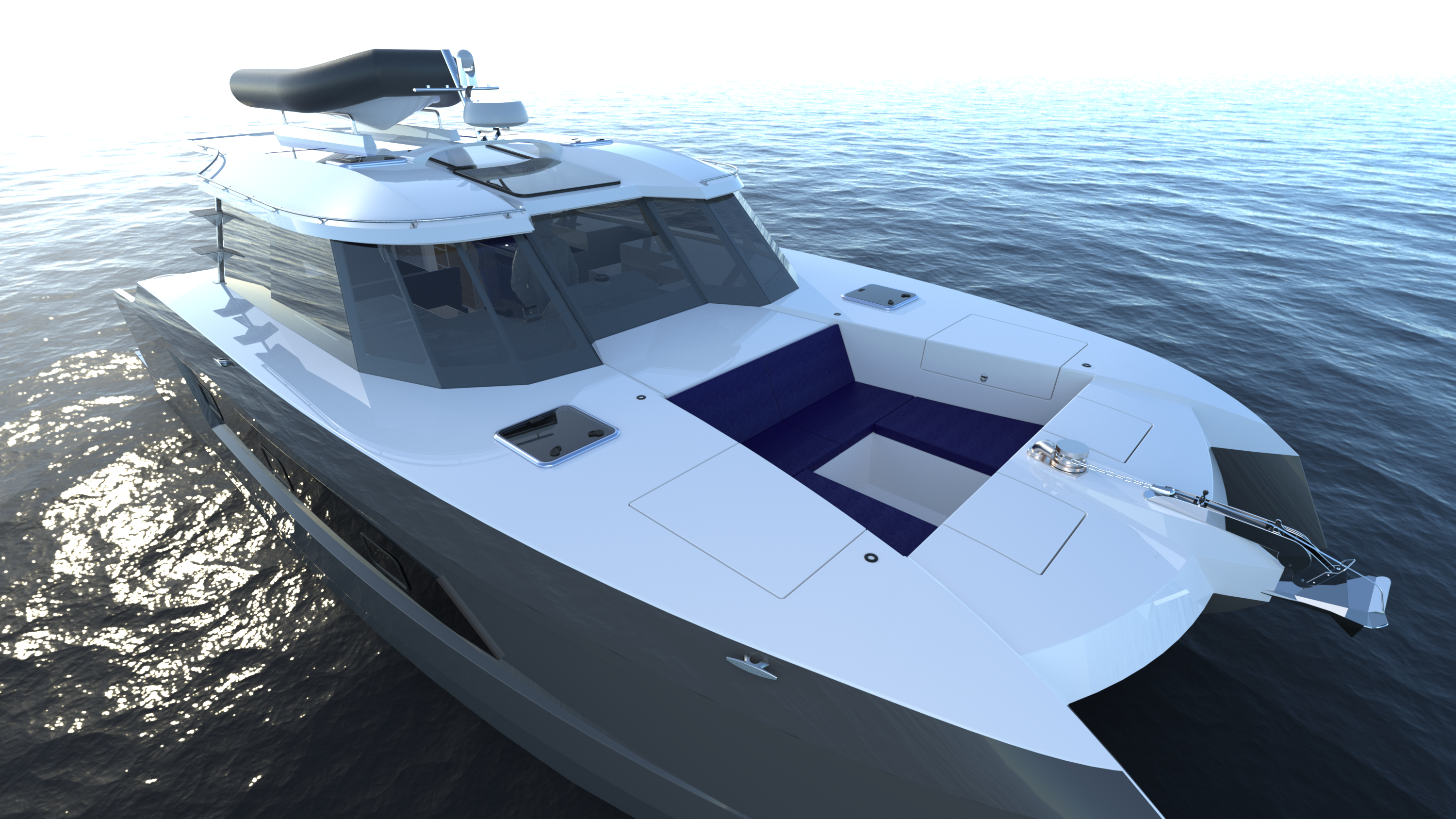

Forward deck cockpit with storage under seats

GENERAL INTERIOR ARRANGEMENTS:

Salon:

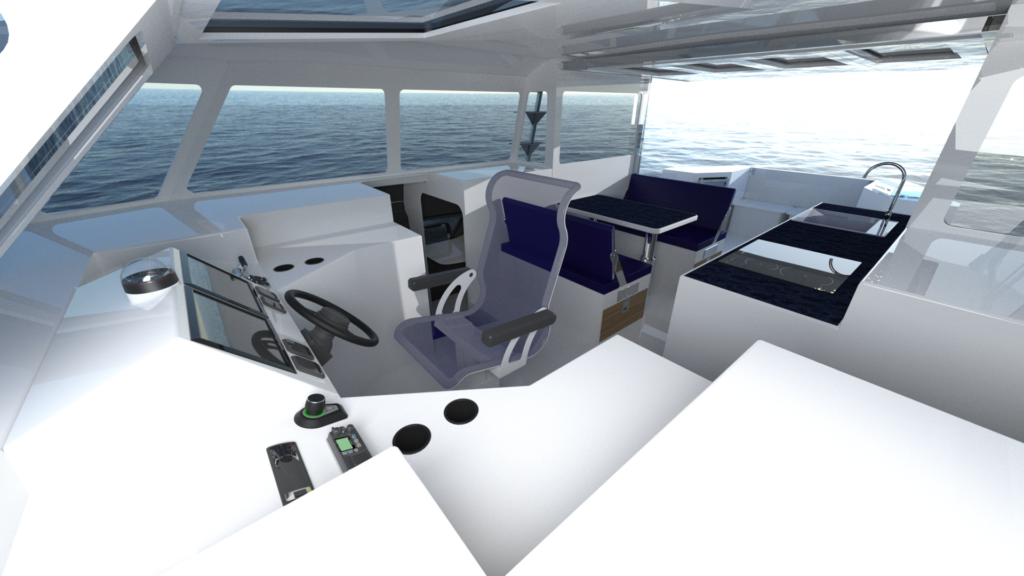

Center helm station with 360-degree unobstructed view
large sliding hatch over helm
G-Force captain’s helm chair
Chart table/Nav Station either side of helm with drawers below
settee with seat backs that flip to allow forward and aft facing seating
Table on adjustable pedestal converts settee to double berth
large draw storage under settee

Galley:
Kohler Prolific sink with slide out trash and recycling bins below
Corian countertops
Vitrifrigo drawer refrigerator/freezer under counter
Induction cooktop with oven and slide out pots and pan storage beneath

Standard 2 cabin 2 head arrangement:
Queen Berth Stateroom forward in each hull
Head with freshwater flush toilet and separate shower aft in each hull

Optional 3 cabin 1 head arrangement:
Port hull with owners queen berth stateroom forward and aft head with freshwater flush toilet and separate shower
Starboard hull with queen berth stateroom forward and bunk beds in aft cabin

SYSTEMS:
Propulsion:
Standard Engines – 2 x 300 hp Yamaha outbounds (option for Mercury, or Suzuki)
Diesel engine option – 2 x 250 hp Yanmar inboard engines with I/On drives
Joy stick control
Hydro-Shield foil installed on outboards – improves performance and provides prop protection

Electrical:
LED lighting throughout
Victron Quattro Inverters (2)
Relion Lithium ion phosphate batteries for house and starting batteries
Westerbeke 7.5KW AC generator
1000-watt solar array integrated into salon roof

Electronics:
Garmin twin 16″ MFD’s at helm station
Garmin Fantom 24” Radar
ICOM M-510 VHF
Fusion Stereo System

Ground Tackle:
Maxwell RC10 electric windlass
Windlass controls at windlass and helm with chain counter
60 lbs. Stainless Steel Ultra Anchor with Ultra bow roller
200’ 5/16 chain

HVAC:
Reverse Cycle heat/air conditioning: Dometic VT 16K BTU qty two
